Raspberry Pi 7" Touch Screen LCD

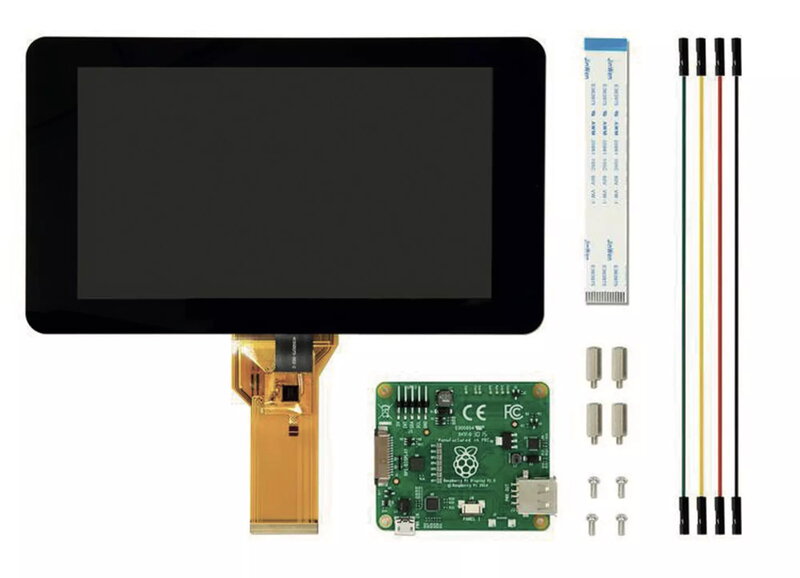

The 7” touchscreen display for Raspberry Pi This seven-inch, 800 x 480 touchscreen display lets you create interactive Raspberry Pi projects like tablets, entertainment systems, and information dashboards. It’s powered from your Raspberry Pi; no separate power supply is required. Raspberry Pi OS provides touchscreen drivers with support for ten-finger touch and an on-screen keyboard, giving you full functionality without the need to connect a keyboard or mouse. The display connects to Raspberry Pi via an adapter board that handles power and signal conversion. Only two connections to your Raspberry Pi are required: power from the GPIO port, and a ribbon cable that connects to the DSI port on all Raspberry Pi computers except for Raspberry Pi 400 and the Raspberry Pi Zero line. Specification: * Display size (diagonal): 7 inches * Display format: 800 (RGB) × 480 pixels * Active area: 154.08mm × 85.92mm * Touch panel: True multi-touch capacitive touch panel with up to 10 points of absolution Contents: 1x Touch Display 2x Jumper Wires 1x Ribbon Cable 4x M2.5 Screws

MPN

SC1227

Release

2024-01-24

Tillverkare

Raspberry Pi Foundation

Vårt artikelnr

371187

Tillverkarens artikelnr

SC1227
