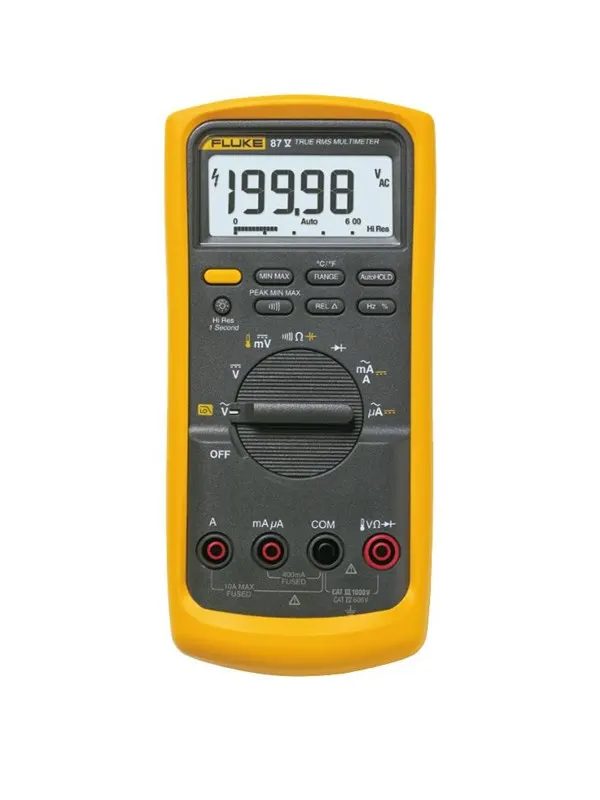

Fluke 87-v multimeter

Designed to Identify Complex Signal Problems FastWhen productivity is on the line and you need to solve problems fast, the Fluke 87V delivers the accuracy and advanced troubleshooting capabilities you need. Designed specifically to handle complex signals, the 87V industrial multimeter, allows you to gain productivity by taking the guesswork out of drive system troubleshooting even in loud, high energy, and high altitude locationsSpecificationsVoltage DCMaximum voltage1000 VAccuracy±(0.05% + 1)Maximum resolution10 VVoltage ACMaximum voltage1000 VAccuracy±(0.7% + 2) True RMSAC bandwidth20 kHz with low pass filter, 3 db @ 1 kHzMaximum resolution0.1 mVCurrent DCMaximum amps10 A (20 A for 30 seconds maximum)Amps accuracy±(0.2% + 2)Maximum resolution0.01 ACurrent ACMaximum amps10 A (20 A for 30 seconds maximum)Amps accuracy±(1.0% + 2) True RMSMaximum resolution0.1 AResistanceMaximum resistance50 MAccuracy±(0.2% + 1)Maximum resolution0.1 CapacitanceMaximum capacitance9,999 Faccuracy±(1% + 2)Maximum resolution0.01 nFFrequencyMaximum frequency200 kHzAccuracy±(0.005% + 1)Maximum resolution0.01 HzDuty cycleMaximum duty cycle99.9%Accuracy±(0.2% per khz + 0.1%)Maximum resolution0.1%Temperature measurement-200.0°C - 1090°C-328.0°F - 1994.0°Fexcluding probe80 BK temperature probe-40.0°C - 260°C-40.0°F - 500°F, 2.2°C or 2% whichever is greaterConductanceMaximum conductance60.00 nSAccuracy±(1.0% + 10)Maximum resolution0.01 nSDiodeRange3 VResolution1 mVAccuracy±(2% + 1)Duty cycle rangeAccuracyWithin ±(0.2% per kHz + 0.1%)Environmental SpecificationsOperating temperature-20°C to + 55°CStorage temperature-40°C to + 60°CHumidity (without condensation)0% - 90% (0°C - 35°C)0% - 70% (35°C - 55°C)Operating Altitude2000 mSafety SpecificationsOvervoltage categoryEN 61010-1 to 1000 V CAT III, 600V CAT IVAgency approvalsUL, CSA, TUV, VDE listedMechanical and General SpecificationsSize201

model_number

87V/EUR

merchant_product_third_category

Multimeter

merchant_product_second_category

Mätinstrument
