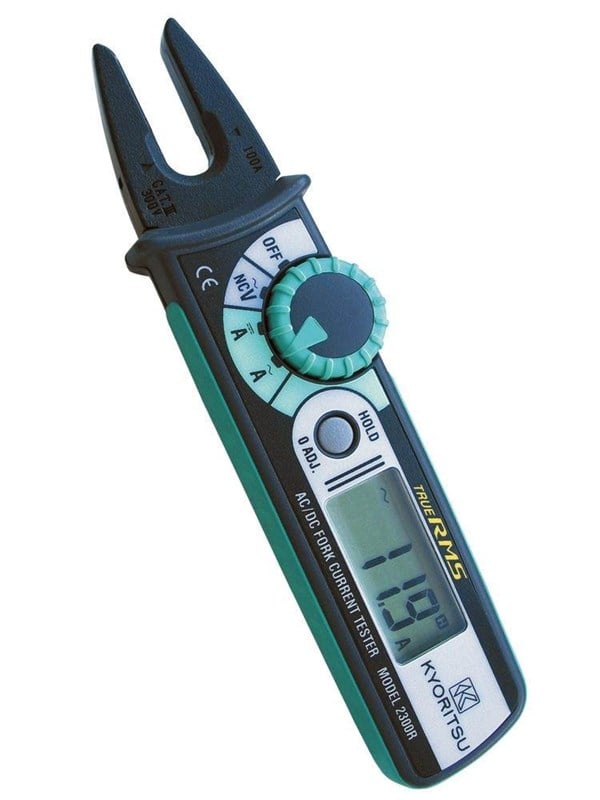

Elma Instruments Kyoritsu 2300r mini clamp meter

Kyoritsu 2300R is the worlds first true RMS AC/DC clamp meter with an open clamp. The instrumentet is able to, due to its narrow clamps, to used everywhere - even in boards where the leads is sitting very close to eachother. Kyoritsu 2300R measures true RMS AC/DC currents up to 100 A and is equipped with data hold, auto shut off, automatical zero-adjustment and non-contact voltage indication. The voltage incication gives an acustiscal signal when the clamp is close to a , wher the voltage is above app. 80V. The instrumentet complies with IEC 61010-1 CAT III 300V and is delivered i a bag incl. batteries and manual. Technical data: Current: 0,1-100A AC/DC Resolution: 0,1 Accuracy: ± 2%+5D Display: 3 1/2 digits Max display: 1049 Clamp size: 10 mm Battery: 2x1,5V LR03 (incl.) Size: 161x40x30 mm Weight: 110 g
