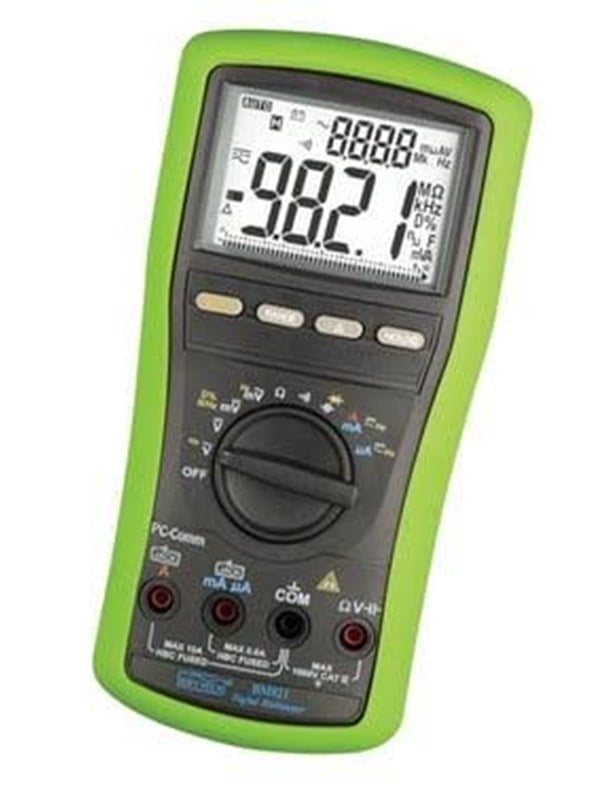

Elma Instruments Elma bm 821 multi meter with pc communication cat iv

Elma BM 821 is a new accurate and robust category IV 1000V multi meter, which, due the high safety is suitable for measurement in all of the installation. Elma BM 821 is equipped with a large bright 4 digits double display and fast analogue bar graph. The instrument is measuring voltage, current, frequency, resistance, capacity, diodes and continuity. Elma BM 821 has a lot of extra functions e.g. data hold, auto shut-off, automatically/manually range selection and RS232 port for PC-communication. With the PC-communication and the Windows software (orders separately), is it possible to make online data logging, where all the measured data can be viewed as: Digital display, analogue display, curve/graph and table. The instrument is UL listet, comply with IEC 61010-1 CAT IV 1000V and is equipped with high efficiency fuses with control function. Elma BM 821 is delivered incl. manual, battery, test leads and a robust rubber protection cover. Technical data:Voltage: 0-100m-1000m-10-100-1000V AC/DC Accuracy: DC: ± 0,08%+2D, AC: ± 0,5%+3D Current: 0-600-6000-60m-600m-6-10A AC/DC Accuracy: DC: ± 0,2% + 4D, AC: ± 0,6% + 3D Resistance: 0-600-6k-60k-600k-6M-60M (600V) Capacity: 0-60n-600n-6-60-600-6000-27mF Frequency: 10 - 100 kHz Diode test: 0-2000mV, 0,4mA < 3,5V DC Continuity test: < 10 acoustical signal Display: 4 og 3 5/6 digits Max. display: 9999 or 5999 Battery: 1x9V 6F22 (incl.) Size: 208 x 103 x 64,5 mm Weight: 635 g
