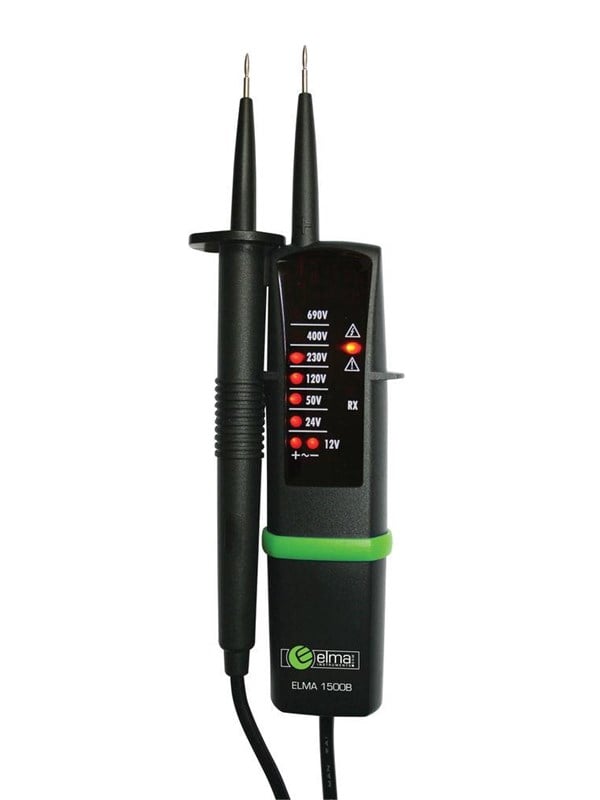

Elma Instruments Elma 1500b - voltage and contuinity tester

Elma1500B is a new small and handy tester with 3 Features: - Test voltage 12-690 V AC / DC, 2-pole with LED indication - Analysis Test with both audible and visual indication - Unipolar phase indication The tester has smart fastening testprobes with 19mm spacing to fit directly into the socket and enables one-hand operation. The instrument has no buttons and switches automatically between the different functions so that it can not be error controlled. Elma 1500B uses standard batteries, and for extra security work voltage test function even without batteries. Elma 1500B are in abundance class IP 54 and meet particular IEC 61010-1 CAT IV 300V and CAT III 600V and EN 61243-3. Technical data: Voltage test: 12, 24, 50 and 120, 230, 400 and 690 V AC / DC Frequency: 0-65 Hz Continuity: 0-200 k Voltage: 100-690 V Battery: 2 x 1,5V LR03 (Inclusive) Dimensions: 205x67x27 mm. Weight: 130 g
