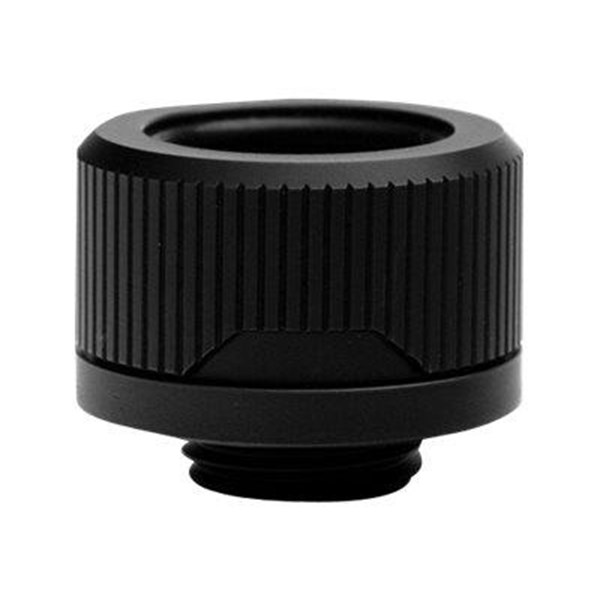

EK Water Blocks EK-Quantum Torque HTC 16 Fitting Satin Black

Technical data: - Finish: Satin black - Thread: G1/4" BSP; 4.5mm male thread length - Supported tube: 16mm OD - The outer diameter of a fitting: 24mm - Installed height: 15mm - Compatible solid tubing: Acrylic, PETG, Copper, Brass, Stainless Steel Made in Europe - Slovenia! PLEASE NOTE: - The use of specifically engineered coolants that contain corrosion, scale, and biological inhibitors is mandatory to prevent damage to your nickel-plated fittings! EK is offering a selection of such products in the coolants section. - Please wet the gasket (o-ring) using drops of water prior to installing the solid tube. - Do not use excessive force when inserting solid tube! - Do not use excessive force when attaching fitting barbs using Allen Key 9mm in order to prevent damage! - It is mandatory to chamfer the edges of the freshly cut solid tube in order to prevent gasket (o-ring) damage. EK recommends a 0.5mm x 45° chamfer. - This product should NOT be installed with any aluminum Fluid Gaming parts! - Black EK-Quantum Torque series fittings are intentionally not painted on the inside to reduce the level of possible pollutants in the loop. - The aesthetic rings are sold separately.

EAN

3831109824467

MPN

3831109824467

Färg

Svart

Höjd

1.5 cm

Finish

Satin

Modell

3831109824467

Diameter

2.4 cm

Producent

EK Water Blocks

Egenskaper

4.5 mm gänglängd, för slang med diameter 16 mm, G1 /4-tums BSPP-gänga

Produkttyp

Klämringskoppling för vätskekylsystem
