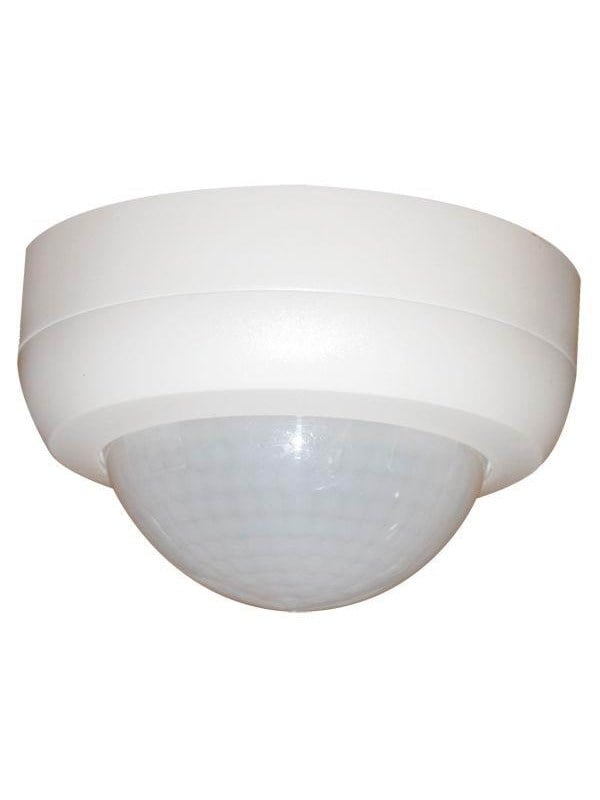

B.E.G. Occupancy detector pd4n-1c-sm

Product: PD4N-1C-P (92144) Motion detector LUXOMAT® PD4-1C for attachment to the wall Mounting to ceiling, PL can. A channel for ignition of light. Thick relay for ignition of lamps with high consumption. In particular, an optical system for detecting the slightest movements. Series production impulse function. Application examples: monitoring of large surfaces such. parking garages, gyms, warehouses, loading ramps, halls etc. Power supply voltage: 230V ~ ± 10% Detection range: 360 ° Range (around) m: - across Ø 24.00 m - head Ø 8.00 m Protection class: IP 44 / Class II / CE Dimensions: Ø 109 x H 65 mm Ambient temperature: -25 ° C to + 50 ° C Housing: UV-resistant polycarbonate high quality remote controllable: IR PD3N, IR-PD-Mini Channel 1 (light control) Max Load: 2300 W, power factor measure = 1, 1150 VA, power factor measure = 0.5. Time settings: 30 sec. - 30 min. or pulsed. Brightness Value: 10-2000 Lux. Power consumption:> 0.5W
